Every Reading Helps Tell Your Story

The AHG-2022 helps make testing simple, fast, and dependable with accurate measurements, intuitive operation, and a design built for everyday confidence.

Blood glucose is always changing. Before breakfast. After meals. During exercise. While resting.

Most of these changes happen quietly. Without warning. Without feeling different.

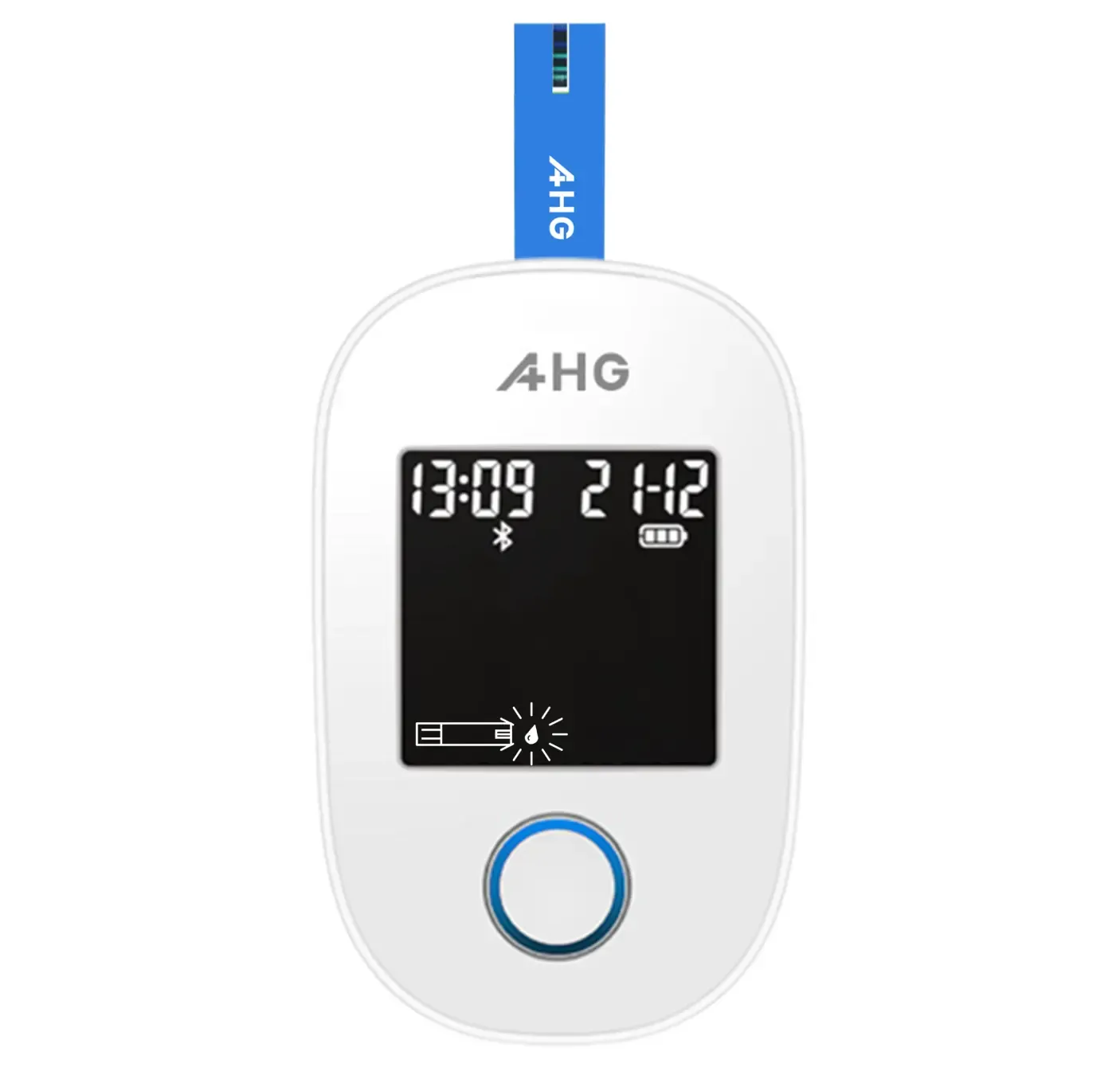

Designed To Make Testing Feel Easier

Checking blood glucose shouldn't feel overwhelming. It should feel familiar. The AHG-2022 was designed to simplify the testing experience from the very first use.

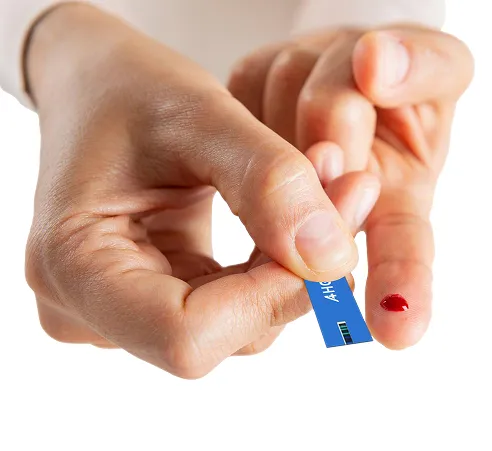

Insert the strip.

Apply a small blood sample.

Receive results in seconds.

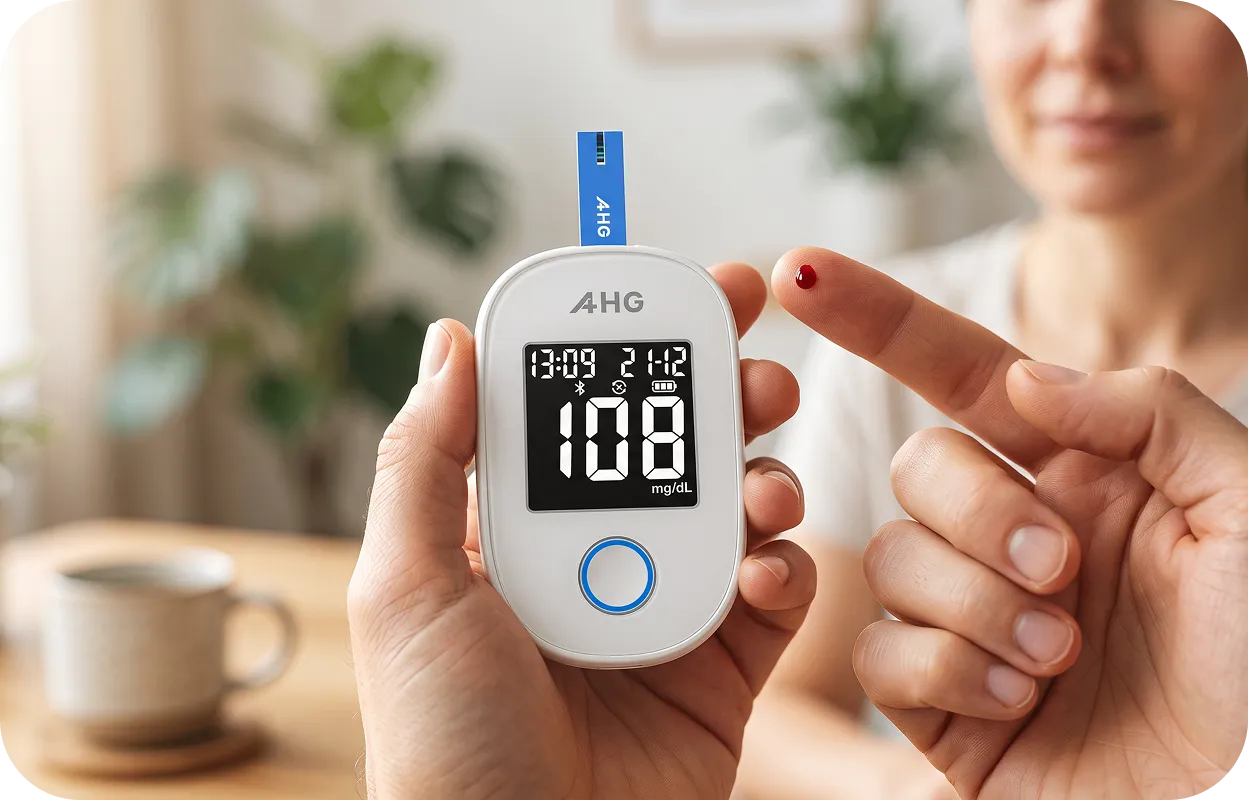

Fast Results When They Matter Most

Sometimes every second counts. Whether it's before a meal, after exercise, or part of a daily routine, waiting shouldn't become another concern.

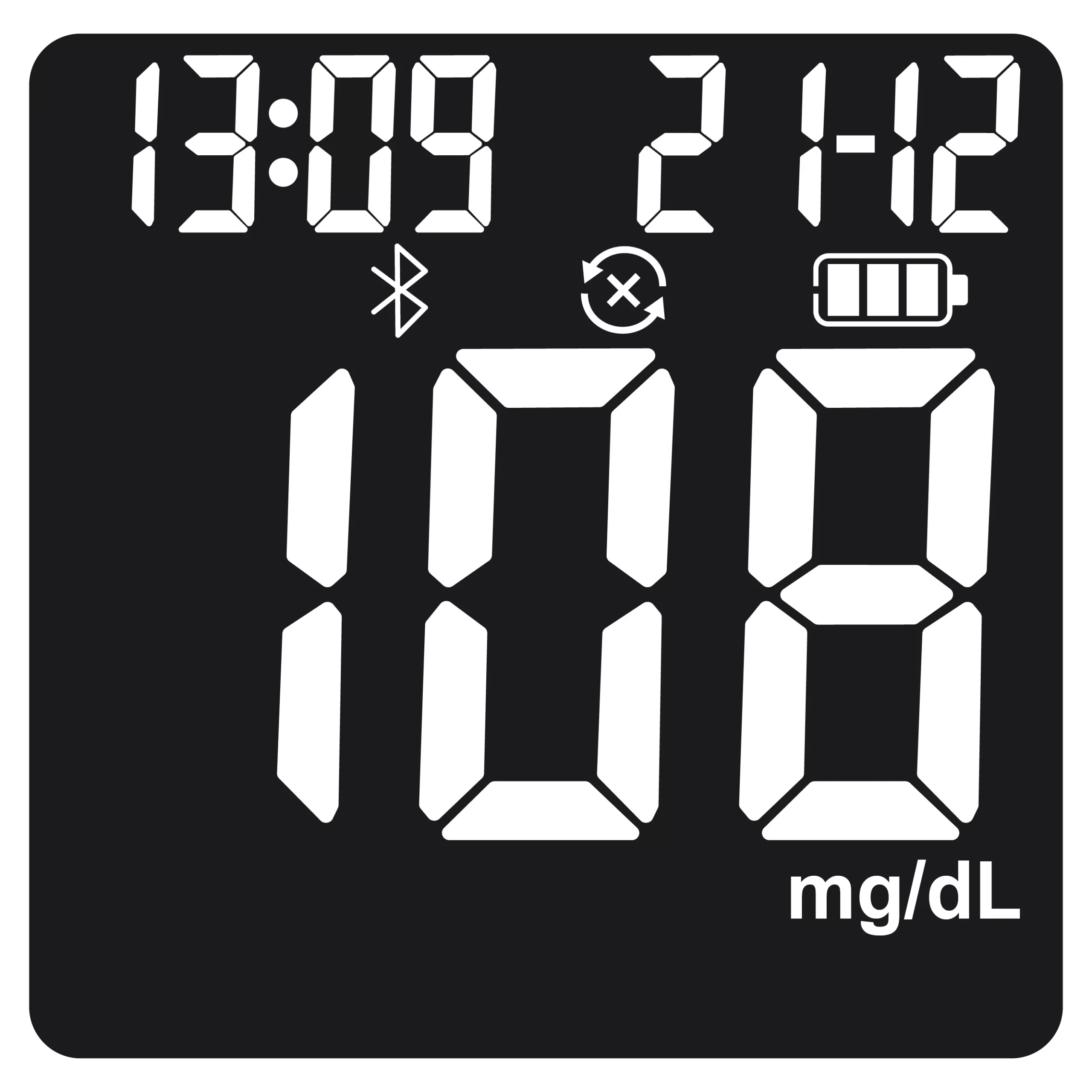

Clear results appear instantly on the display.

Helping users spend less time testing. And more time living.

Built Around Everyday Routines

Blood glucose testing isn’t something done once. The AHG glucose monitoring systems use a carbon-silver structure test strip with 8-electrode technology on a single layer. This advanced design improves measurement accuracy by monitoring multiple testing conditions and reducing possible interference factors.

The AHG-2022 was designed to support those everyday moments with a lightweight, portable design that's always ready when needed.

Ready whenever life calls for another reading.

Morning checks. Pre-meal testing. Post-meal monitoring. Bedtime routines.

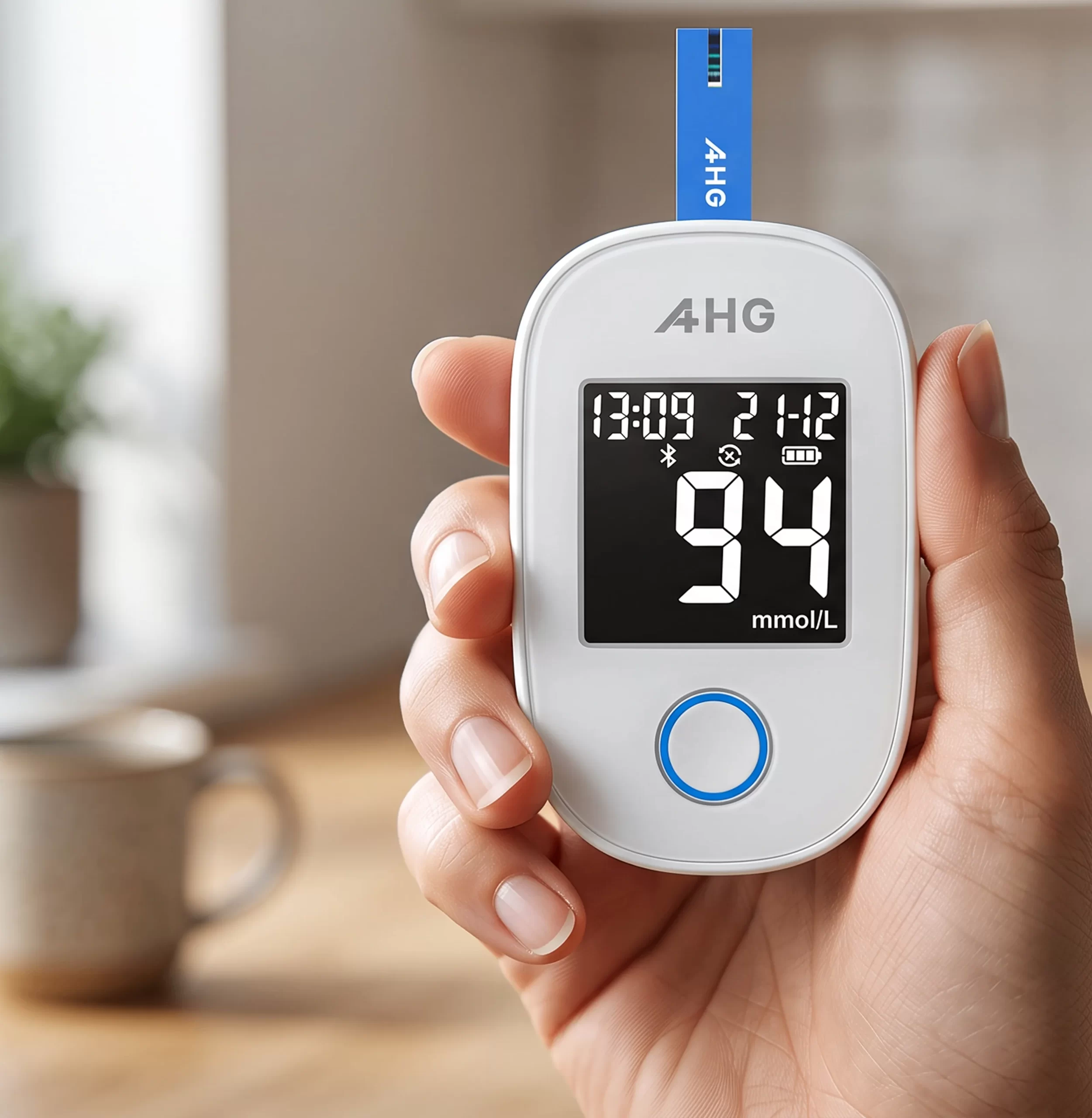

Precision You Can Depend On

Confidence begins with accuracy. The AHG-2022 uses advanced biosensor technology and intelligent processing to help deliver reliable blood glucose measurements.

Because every number matters.

Every reading is designed to provide dependable information that supports better health decisions.

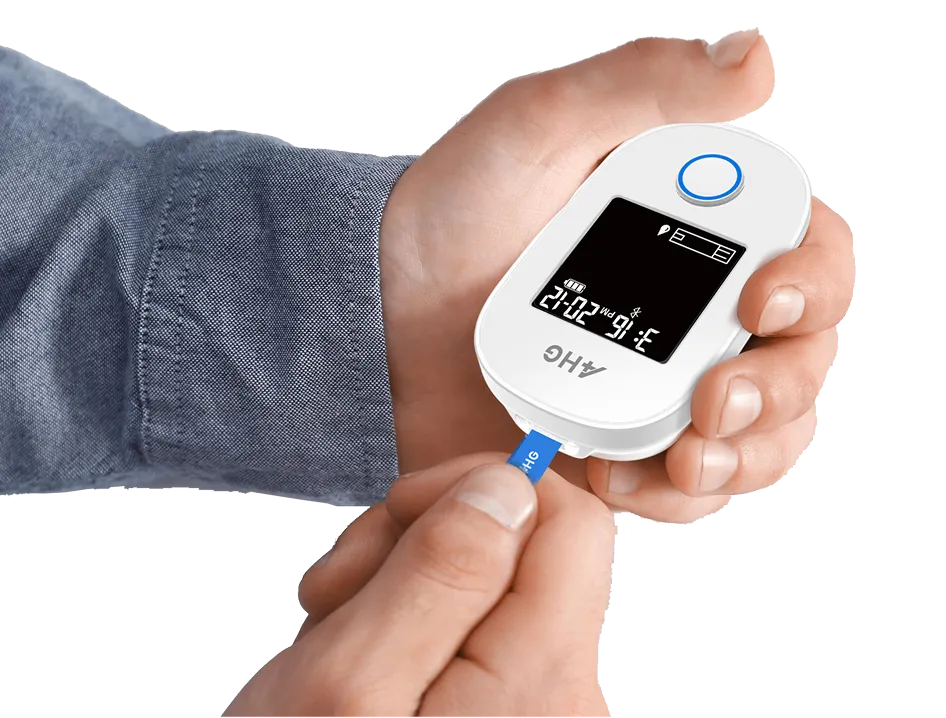

Made To Go Wherever Life Goes

Health doesn't stay in one place. Neither should your glucose monitor.

Lightweight construction. Simple operation.

Battery-powered convenience.
Always ready for the next check.

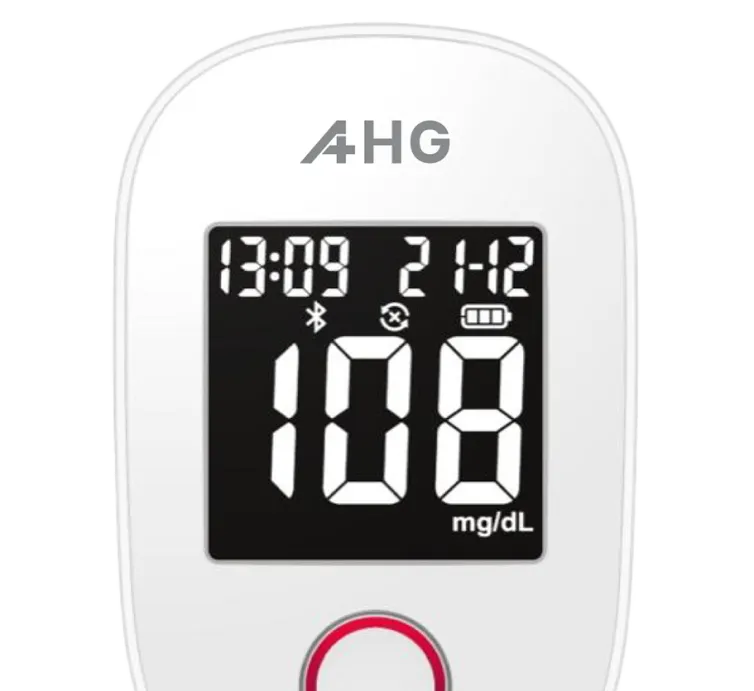

Technical Specifications

Model

AHG-2022

Sample

Fresh capillary whole blood

Test Measured

Glucose in fingertip capillary whole blood

Enzyme

GOD (Glucose Oxidase)

Sample Volume

0.8 μL

Test Time

5 seconds

Memory

Stores up to 500 records with date & time

Measurement Range

20 to 600 mg/dL

Battery Type

Rechargeable, non-serviceable, 250mAh, 3.7 Volt DC nominal, Lithium polymer battery (5V input charge voltage)

Automatic Shutoff

2 minutes after the last action

Display Size

32mm x 32mm

Operating Temperature

41-113°F / 5-45°C

Dimensions

83mm x 52mm x 18.7mm

Charging Port

Micro USB

Weight

Approximately 53g

Advanced Lancing Device

The AHG lancing device is designed to provide comfortable and controlled blood sampling with reduced vibration and minimal discomfort.
Forward Spring Technology

Forward Spring Technology

  • Optimizes the lancet movement.
  • Reduces vibration during penetration.
  • Helps minimize pain sensation.
Independent Lancet Holder

Independent Lancet Holder

  • Keeps the lancet stable during insertion.
  • Improves puncture precision.
  • Supports safer operation.
Elastic Rail System

Elastic Rail System

  • Provides smoother lancet movement.
  • Reduces sudden impact during penetration.
  • Improves user comfort.
Lancet Installation Indicator

Lancet Installation Indicator

  • Provides a visual indication of whether a lancet has been properly installed before testing.
Adjustable Depth Settings

Adjustable Depth Settings

  • Allows users to select penetration depth according to skin type.
  • Provides personalized comfort.
2-in-1 Button & Lancet Ejector

2-in-1 Button & Lancet Ejector

  • Combines activation and disposal functions.
  • Improves hygiene and convenience.
  • Includes safety mechanism to prevent accidental lancet release.

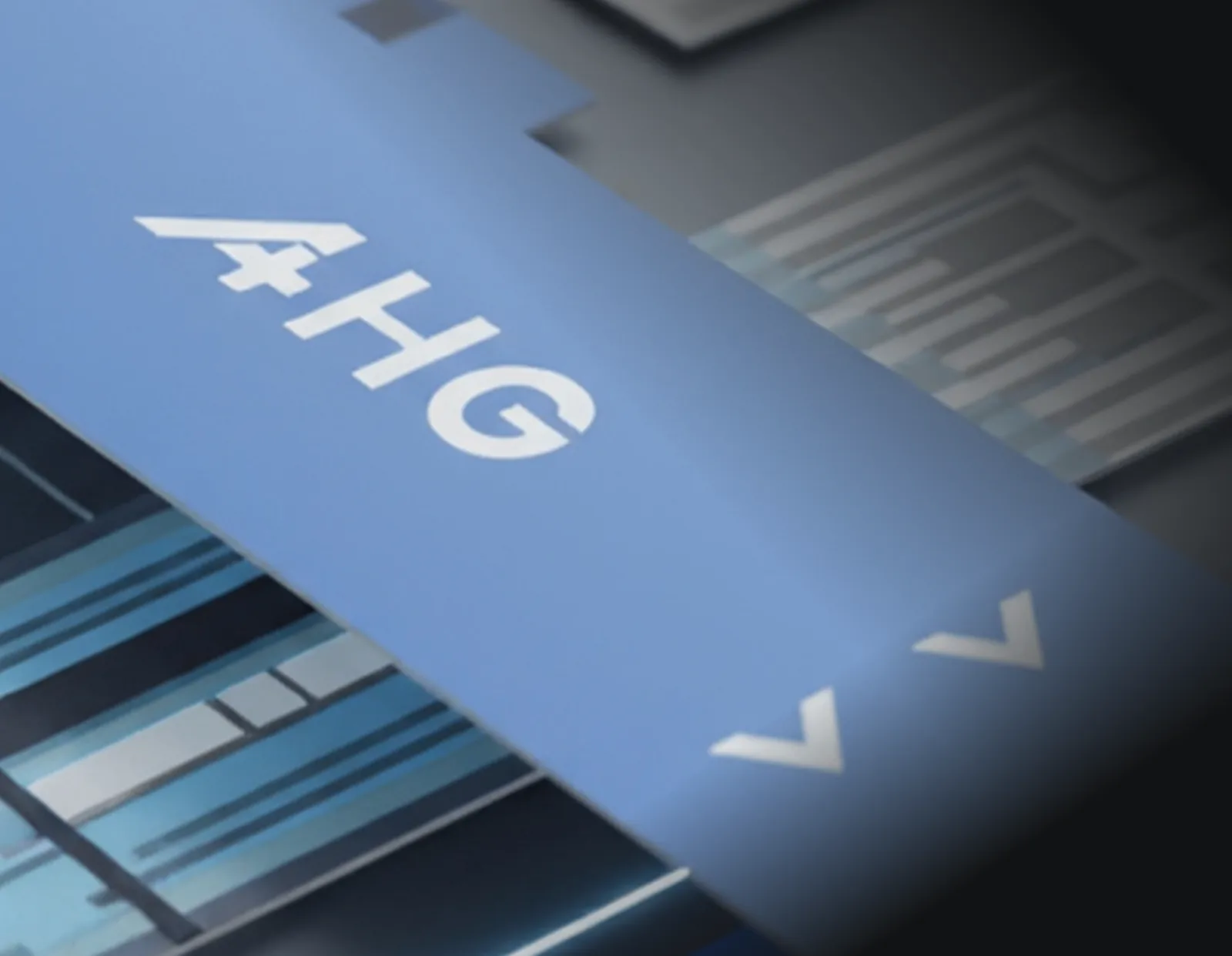

Advanced 8-Electrode Test Strip Technology

The AHG glucose monitoring systems use a **carbon-silver structure test strip with 8-electrode technology on a single layer**. This advanced design improves measurement accuracy by monitoring multiple testing conditions and reducing possible interference factors.

Automatic Code Calibration

Function:

  • Automatically verifies calibration information, eliminating manual coding errors.

Benefit:

  • Eliminates user coding mistakes.
  • Consistent calibration.
  • Improved measurement reliability.

Hematocrit Interference Correction

Function:

  • Detects blood characteristics affected by hematocrit levels.
  • Provides compensation within approximately ±10%.

Benefit:

  • More accurate results for diverse patient populations.
  • Reliable performance for children, adults, and pregnant women.

Temperature Compensation

Function:

  • Monitors environmental temperature effects.
  • Automatically compensates within approximately ±5%.

Benefit:

  • Stable measurements in varying climates.

Sample Sufficiency Detection

Function:

  • Confirms whether enough blood has entered the reaction area.

Benefit:

  • Prevents inaccurate readings caused by insufficient samples.

Humidity Exposure Detection

Function:

  • Identifies possible strip degradation caused by moisture exposure.

Benefit:

  • Prevents inaccurate readings caused by improperly stored strips.

Control Solution Recognition

Function:

  • Automatically distinguishes control solution testing from blood glucose measurements.

Benefit:

  • Supports proper verification of meter and strip performance.

Strip Damage Detection

Function:

  • Identifies damaged or defective test strips.

Benefit:

  • Prevents incorrect measurements caused by defective strips.

Strip-Meter Compatibility Check

Function:

  • Verifies compatibility between the inserted strip and the meter.

Benefit:

  • Prevents use of incompatible or unsupported strips.

Test Strips Specifications

Design

Carbon-Silver Structure Electrode Design

Technology

8-Electrode Technology

Enzyme

GOD (Glucose Oxidase)

Results

Highly Accurate & Precise Results

Temperature

Eliminates Temperature Interference

Testing

For Self-Testing and In-Vitro Diagnostic Use Only

Storage Temperature

2°C to 30°C / 36°F to 86°F

Humidity Range

10-90%

Open Shelf Life

6 Months

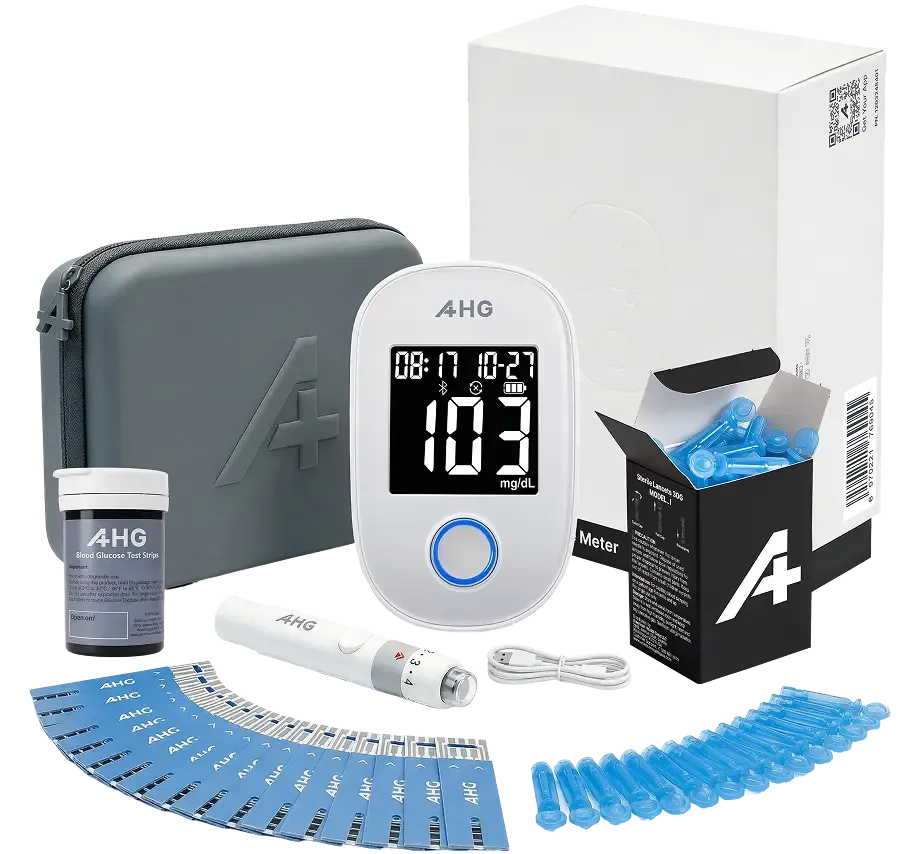

What's Included

Inside the box, you'll find everything needed to begin monitoring right away.

AHG-2022 Blood Glucose Monitor
Blood Glucose Meter

Blood Glucose Meter

1 Lancing Device

1 Lancing Device

25 Blood Glucose Test Strips & 25 Lancets

25 Blood Glucose Test Strips & 25 Lancets

Micro USB Cable

Micro USB Cable

User Manual

User Manual
